Celloger® Nano for Live Cell Imaging

Curiosis

Catalog No.: QRI-CRCLG-NB02

Product Description

Benchtop digital microscope for live cell imaging

Celloger® Nano is a benchtop digital microscope equipped with a wireless connection, enabling you to check the state of your cells in real-time from any location within your laboratory. With all the necessary functions to check the cells, you can quickly assess the condition of your cells.

Expand your cell-based research with Celloger® Nano, a benchtop digital microscope for live cell imaging.

Key Features

• Real-time cell monitoring
• Easy portability and installation
• Wireless data transfer via tablet
• Compatible with various vessel types
• User-friendly interface
• One-click time-lapse video creation

Quick cell check

Celloger® Nano is a system perfectly suitable for confirming the conditions of cells in various locations depending on the researcher's experimental needs. It enables quick and efficient inspection of cells, allowing researchers to rapidly identify potential issues in their samples.

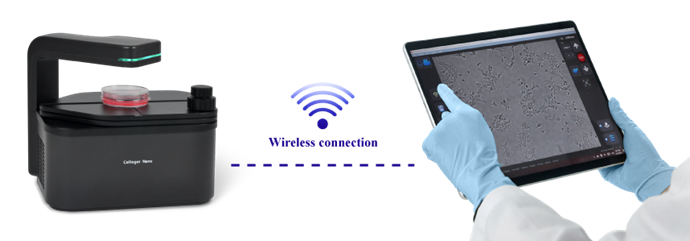

Suitable for use with laptops and tablets

The wireless connection enables easy data transfer, allowing you to check your cells without space constraints. It provides software optimized for laptops and tablets, ensuring a seamless user experience.
Celloger® Nano can be easily installed without a complicated connection process, saving you time.

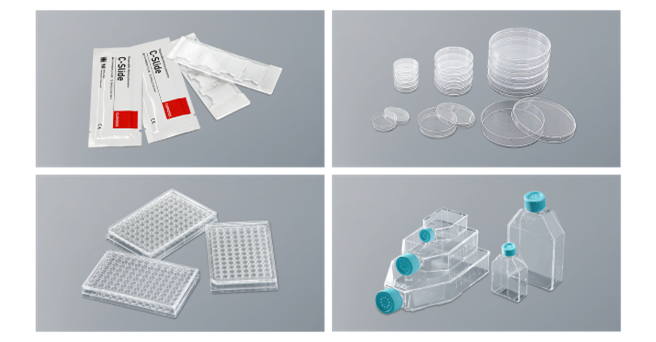

Multiple vessel types

Different kinds of vessels can be used in Celloger® Nano using its wide stage that gives enough space for large labware placement.

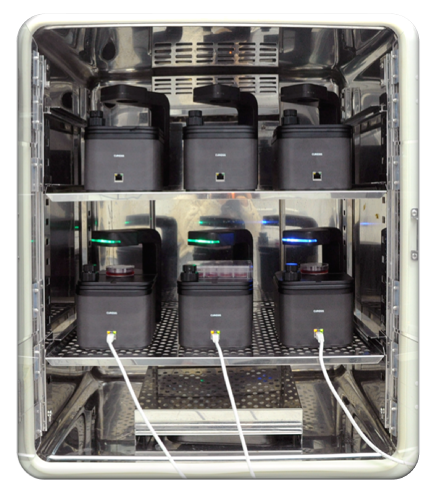

Fits into standard CO₂ incubator

Celloger® Nano is a very compact system with a size almost equivalent to half of A4 paper. Compared to other products, several Celloger® Nano systems can fit into a standard CO₂ incubator.
Maintaining the performance of a device working in a hot and humid environment is very challenging. With Celloger® Nano, it is equipped with a fan that minimizes risk factors such as preventing moisture from forming and making it easier for maintenance.

User-friendly functions

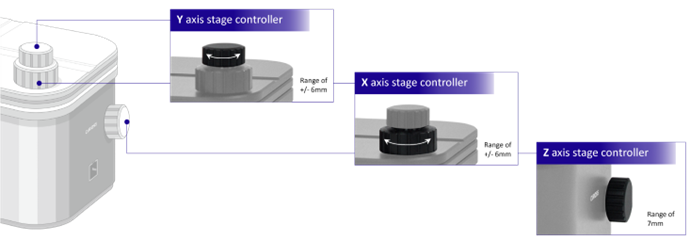

Precise stage controller

Preview record

Videos

Celloger® Nano – Automated Live Cell Imaging System

Specifications

Dimension	226 x 358 x 215 mm
Weight	5.6kg / 12.3lb
Objective Lens	4X / 10X
Field of view	2X (2.53 × 1.90 mm) / 4X (1.19 x 0.90 mm) / 10X (0.57 x 0.43 mm)
Imaging modes	Brightfield, Fluorescence(Green / Red)
Fluorescence	Green: Excitation (470/40x) / Emission (510lp)
	Red: Excitation (525/30x) / Emission (570lp)
Light source	LED
Camera	5MP CMOS
Stage	Motorized XYZ
Imaging positions	Multiple
File export format	TIFF, AVI (JPEG, PNG)
Culture vessels	Flask, dish, well plate, slide
Operating environment	10~40℃, 20~95% humidity
Power requirements	100-240V, ~50/60Hz
