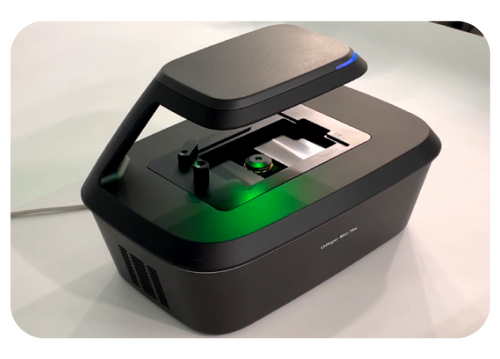

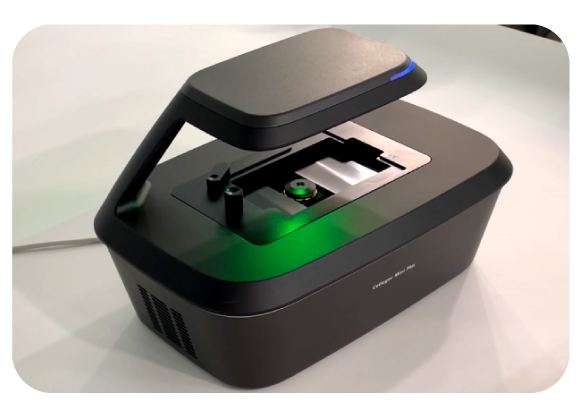

Celloger® Mini Plus for Live Cell Imaging

Curiosis

Catalog No.: QRI-CRCLG-MPB02

Product Description

Celloger® Mini Plus is an automated live cell imaging system with advanced fluorescence and bright-field microscopy, autofocusing, and real-time multi-position imaging technology. It provides essential tools for acquiring high-quality images and obtaining accurate research results. This versatile and user-friendly system supports a wide range of cell-based research and applications. Expand your cell discoveries with Celloger® Mini Plus and accelerate your research.

Key Features

• Real-time cell monitoring
• Compact and portable design
• Multi-point imaging up to 96 wells
• Compatible with various vessel types
• Z-stack multi-focal imaging
• Reliable autofocus

Real-time monitoring

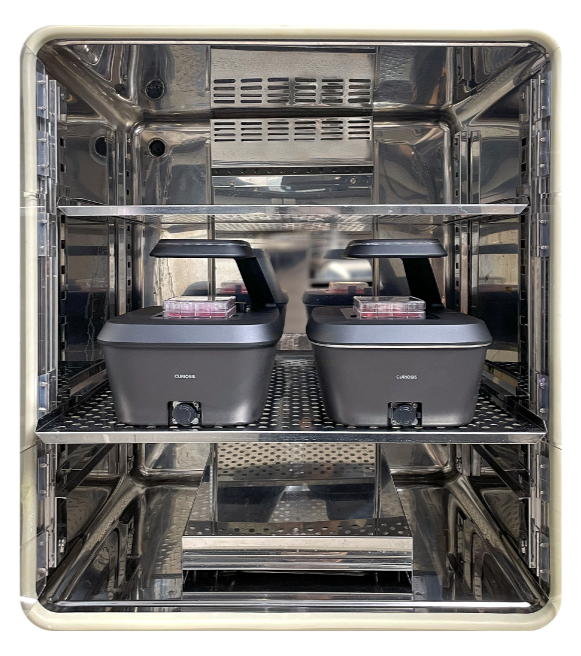

Maintaining the performance of a device working in a hot and humid environment is very challenging. With Celloger® Mini Plus, you can easily monitor live cells inside the incubator for a long time without disturbing the environment suitable for cell culture.

Compact size

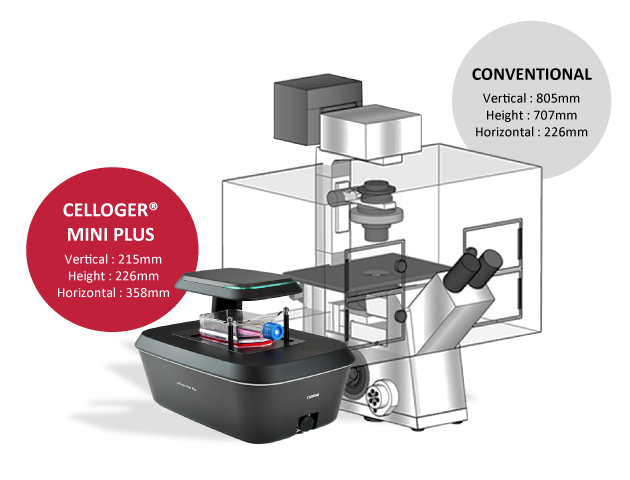

Celloger® Mini Plus is compact in size with 226(h) x 358(l) x 215(w)mm where several Celloger® Mini Plus systems can fit into a standard CO2 incubator. Since the system weighs about 5kg, it can be easily carried in and out of the incubator during the experiment.

Multi-point imaging

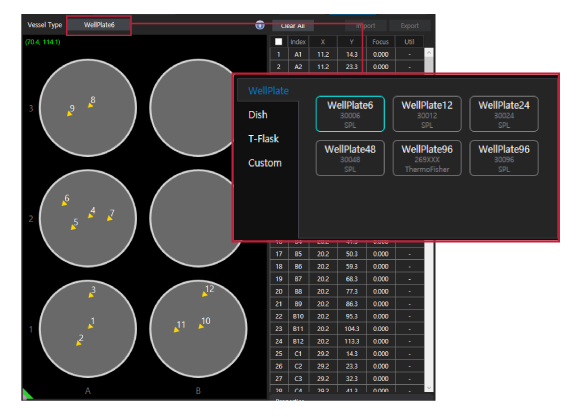

Using the motorized camera that travels 117mm x 77mm, x and y axis respectively, multiple points within the travel range can be captured following the schedule (intervals, cycles, total time) set by the researcher.

Stable imaging performance

Celloger® Mini Plus doesn’t have a moveable stage but instead, the camera inside the system moves to capture the images of cell in multiple positions (refer to the video above). Since the vessel and cell sample are in a steady state, this provides a stable environment for the cells to grow.

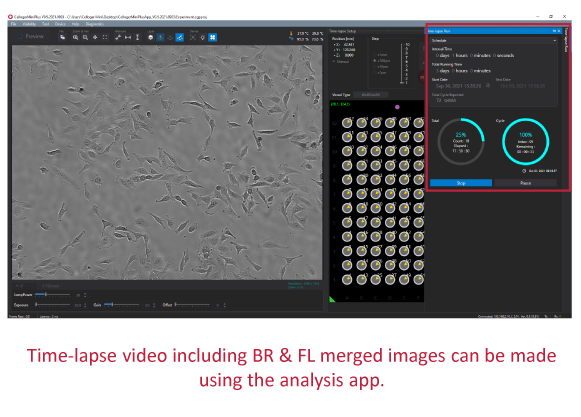

Time-lapse video

Images captured according to set schedule can be made into videos in simple clicks.
User-friendly functions

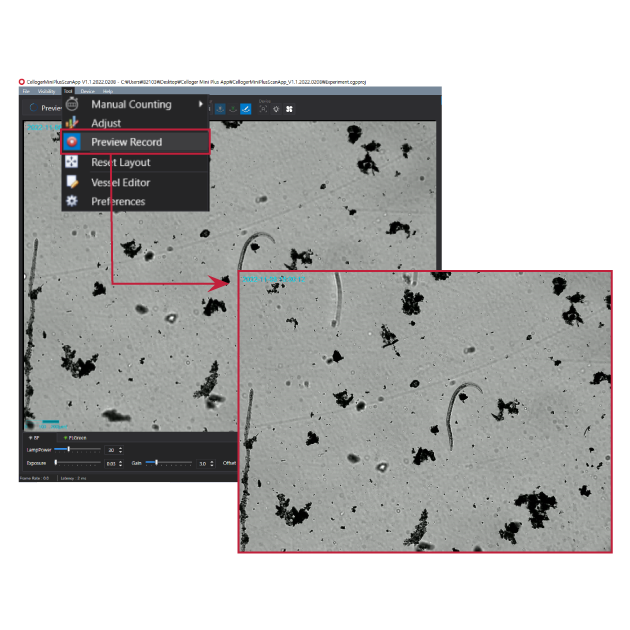

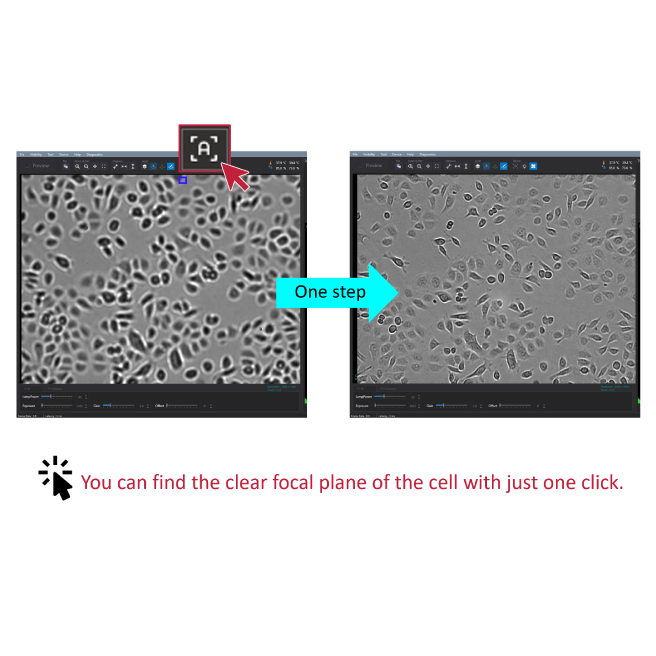

Autofocusing

Time-lapse video

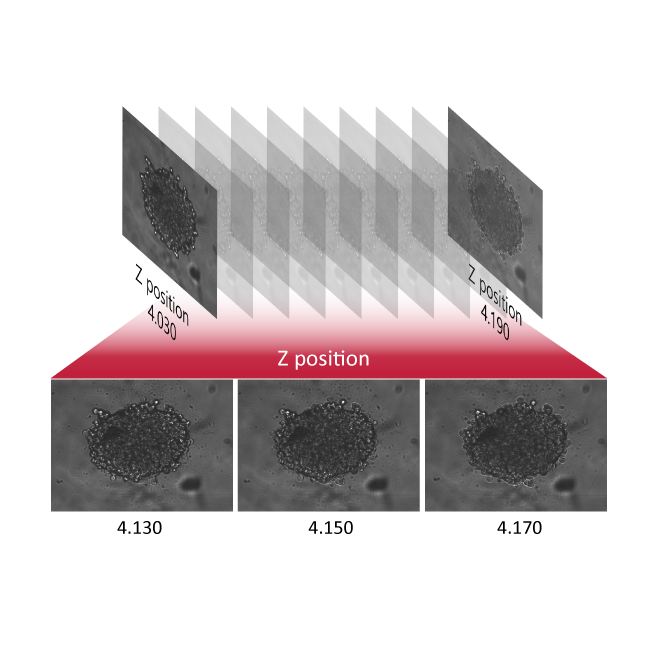

Z-Stacking

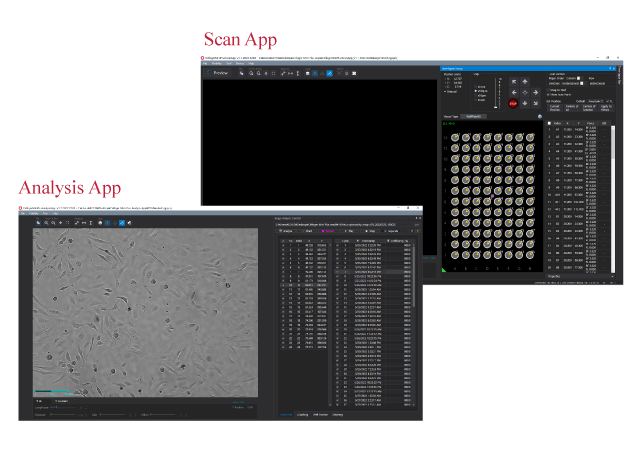

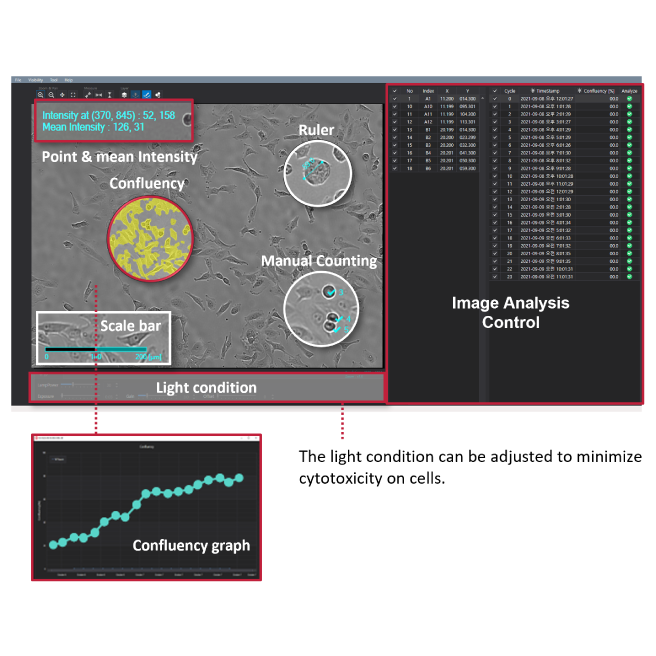

Analysis tools

Z-Stacking

Analysis tools

Video

Celloger Mini Plus – Automated Live Cell Imaging System

Specifications

Dimension	226 x 358 x 215 mm
Weight	5.6kg / 12.3lb
Objective Lens	4X / 10X
Field of view	2X (2.53 × 1.90 mm) / 4X (1.19 x 0.90 mm) / 10X (0.57 x 0.43 mm)
Imaging modes	Brightfield, Fluorescence(Green / Red)
Fluorescence	Green: Excitation (470/40x) / Emission (510lp)
	Red: Excitation (525/30x) / Emission (570lp)
Light source	LED
Camera	5MP CMOS
Stage	Motorized XYZ
Imaging positions	Multiple
File export format	TIFF, AVI (JPEG, PNG)
Culture vessels	Flask, dish, well plate, slide
Operating environment	10~40℃, 20~95% humidity
Power requirements	100-240V, ~50/60Hz
